21700 Rechargeable Battery.

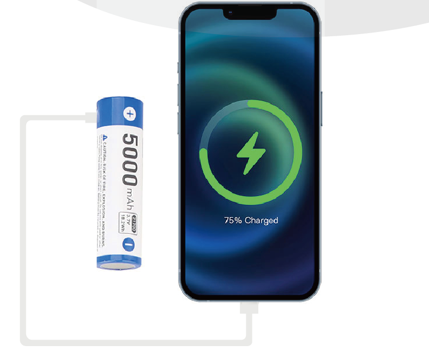

Two-way USB-C charging. High power and high performance.
Download technical overviewTXT01
Specifications.
Technical details
- Model
- 21700
- Nominal capacity
- 5000 mAh
- Nominal voltage
- 3.7 V
- Discharge end voltage
- 2.5 V
- Maximum continuous discharge current
- 30 A
- Standard charging voltage
- 4.2 ± 0.03 V
- Standard charging current
- 2500 mA
- Transport voltage
- 3.6–3.9 V
- Overcurrent protection
- 25.5–35 A
- Operating temperature
- −20 to 50 °C
- Storage temperature
- −20 to 50 °C; best at 21 ± 3 °C
- Internal resistance
- ≤23 mΩ
- Cycles
- ≥500
- Protected
- Yes
- Positive terminal
- Button top
- Net weight
- 78 g
02
High power. High performance.
- A maximum continuous discharge current of 30 A supports high-drain devices.
- 5000 mAh capacity maximizes runtime.
- 1000 charge cycles offer cost savings and reduce environmental impact.
- A built-in explosion-proof valve enhances safety.
- An integrated gold-plated protection circuit.
- Global product liability insurance.
